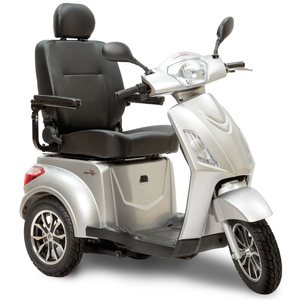

Raptor 3-Wheel
FDA Class II Medical Devices
| Model | Raptor 3-Wheel |
| Weight Capacity | 400 lbs. |
| Front Tire | 3"x16" |
| Rear Tires | 3"x16" |
| Maximum Speed1 | 14 mph |
| Ground Clearance3 | 3.5" at center of frame |
| Turning Radius3 | 60" |
| Length/Width3 | 59"/24.75" |
| Seating3 | High back 20w x 18d (100° Limited Recline) |
| Seat-to-Ground | 28" |
| Weight (w/o Batteries) | 208 lbs. |
| Seat-to-Deck | 19" |
| Battery Weight | 53 lbs. each |
| Battery Requirements4,5 | 75 (AH) |
| Per Charge Range1,2 (Max.) |
19 miles (up to 400 lbs. and full speed) 31 miles (up to 220 lbs. and at low speed) |
| Battery Charger | 8 amp |
| Suspension | Front and rear |
| Weight of Heaviest Piece3,6 | (unit does not disassemble) |
| Warranty | 2 year limited |
