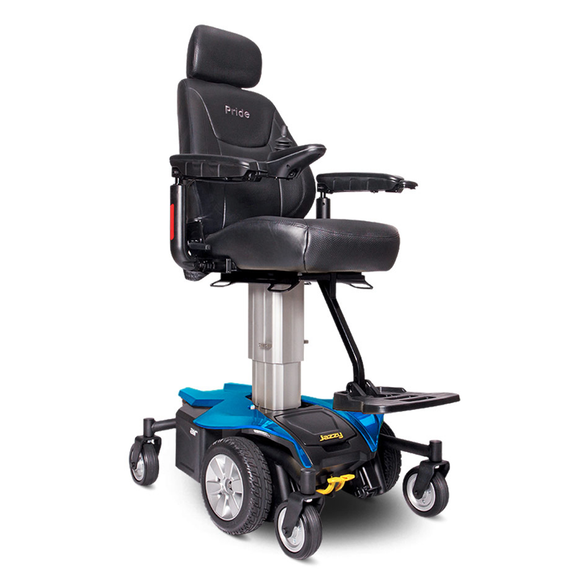

Pride Jazzy Air 2
The Pride Jazzy Air allows wheelchair users to elevate their seat up to 10 inches, while traveling at a walking speed of 3.5 mph. In just 16 seconds, you can be at eye level for social events or to reach items easily. The turning radius is rather impressive at only 22 inches in radius.
| Model |
Jazzy Air® 2
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 20.75" |
| Width1 | 23.19" |
| Length1,2 | 41.93" |
| Maximum Speed3 | Up to 4.0 mph (elevated and non-elevated position) |
| Ground Clearance1 | 1" at motor bracket |
| Front Wheels | 6" flat free |
| Drive Wheels | 10" flat free |
| Rear Wheels | 6" flat free |
| Drivetrain | Two motor, Mid-Wheel 6® drive |
| Braking System | "Intelligent Braking" (electronic regenerative, disc park brake) |
| Suspension Type | Active-Trac® with Mid-Wheel 6® Technology |
| High-Back Seat (max. size) | 20"W x 20"-22"D |
| High-Back Seat-to-Floor Range | 21.25” – 33” |
| Battery Size (2 required) | 12 volt, U-1 Optional 40 Ah |
| Battery Weight5 | U1 Batteries: 24.5 lbs. 40 Ah Batteries: 32.5 lbs. |
| Standard Battery Charger | 5 amp, off-board |
| Per-Charge Range3,6 | Up to 16.8 miles (U1) Up to 19.2 miles (40 Ah) |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
